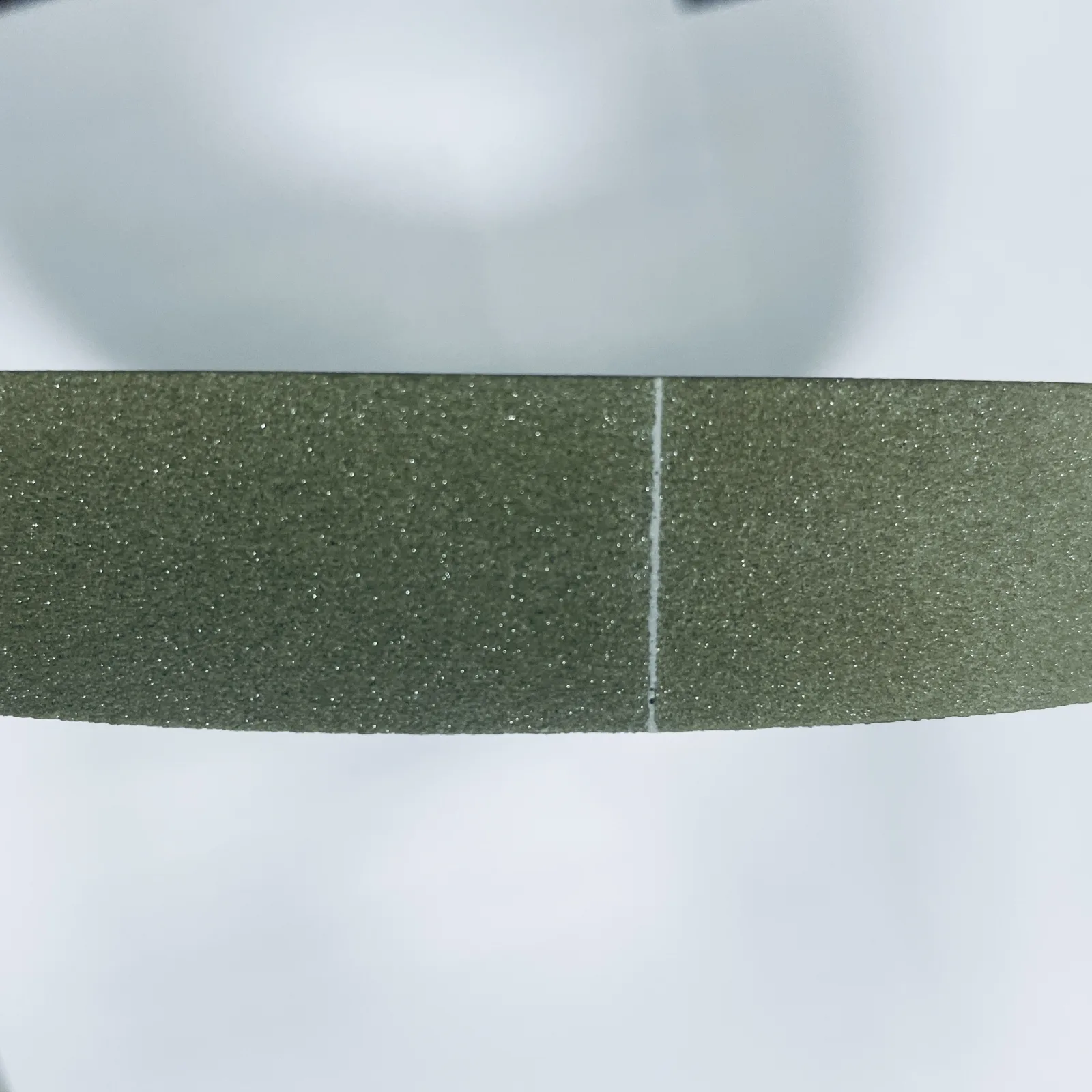

A vitrified bond diamond wheel uses a glass-ceramic bond fired at high temperature. The bond has controlled porosity, which carries coolant into the cut and clears swarf, while its rigidity keeps the wheel profile accurate. Fengzuan vitrified bond wheels are used for PCD compact, carbide and ceramics with diamond, and for precision internal and cup grinding of hardened steel with vitrified CBN.
Production in our Shijiazhuang factory covers cold pressing on hydraulic presses, vitrified firing, precision turning, dynamic balancing and truing. We produce vitrified 1A1 parallel wheels in diameters such as 200, 300 and 350 mm, vitrified internal grinding wheels and cup wheels, all to your drawing.
Vitrified Bond Wheel Specifications
| Parameter | Range / option |
|---|---|
| Abrasive | Diamond or CBN |
| Bond | Vitrified (V) |
| Outer diameter (D) | Ø10–850 mm |
| Thickness (T) / bore (H) | Made to your drawing / to suit your machine spindle |
| Abrasive layer (X) | 3–20 mm common; other depths to drawing |
| Grit | 80# – 3000# |
| Concentration | 50 – 150 |
| Shapes | 1A1, 6A2, 6A2T, 11A2, 12A2, internal 1A8/1A1W and profiles to drawing |
| Coolant | Wet grinding recommended (confirm per application) |
| Marking example | 1A1 D150 T10 X5 H32 · D/CBN 140/170 C75 B/V/R |
Vitrified Wheel Shapes

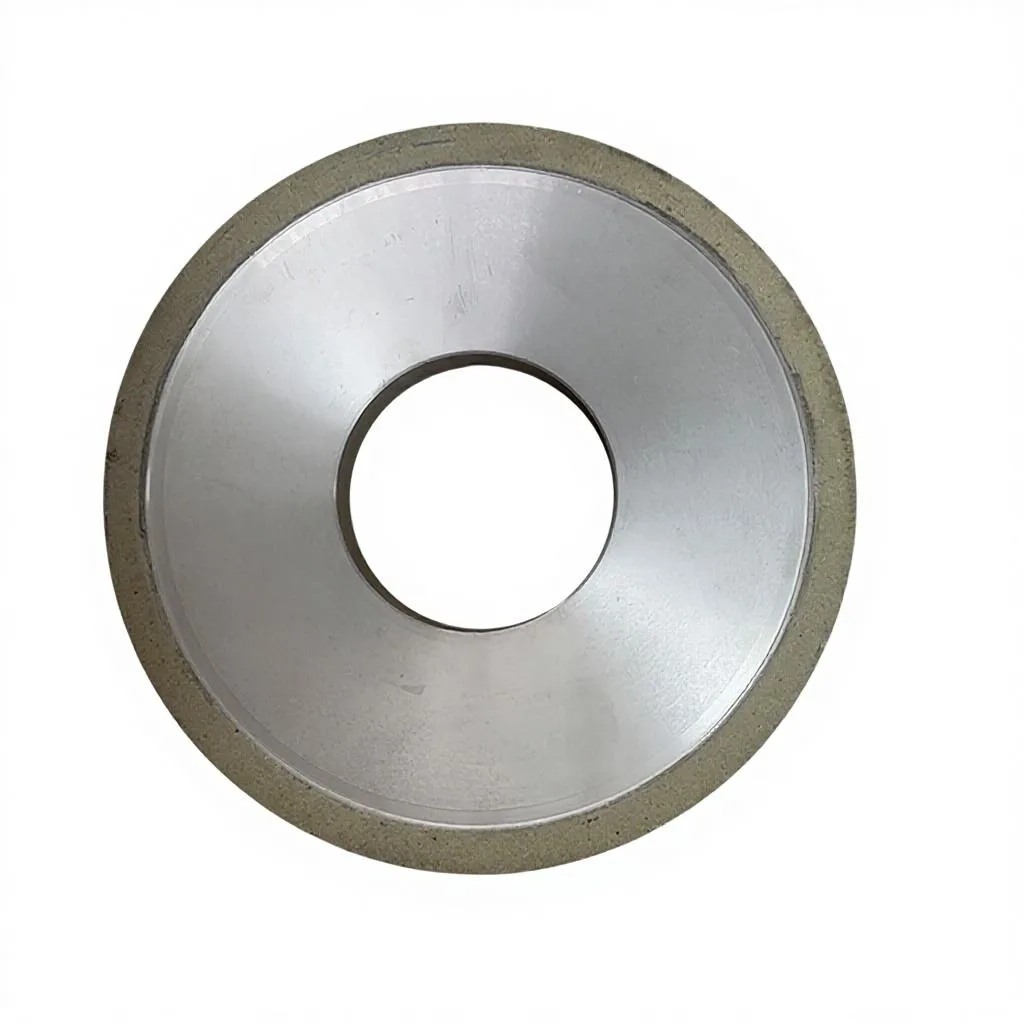

1A1 vitrified bond parallel wheel
Straight wheels for peripheral grinding of carbide and PCD blanks and for surface grinding.
6A2 and 6A2T vitrified cup wheels
Cup wheels for face grinding of PCD and PCBN inserts, where flatness and sharp edges are critical.
11A2 and 12A2 vitrified wheels
Flaring cup and dish wheels for tool and cutter grinding with good edge holding.
Vitrified internal grinding wheels (1A8 / 1A1W)
Vitrified CBN and diamond internal wheels for precision bore grinding.
Applicable Workpiece Materials
- PCD / PDC compact tools and blanks
- PCBN inserts (CBN ceramics)
- Tungsten carbide
- Technical ceramics
- Hardened steel, HSS and bearing steel (vitrified CBN)
Advantages of the Vitrified Bond
- Controlled porosity for free cutting and good coolant flow
- Excellent profile and form holding
- Easy to true and dress
- Sharp, low-chipping edges on PCD and PCBN
- Stable size for precision internal and production grinding
Related: PCD and PCBN grinding wheels · CBN grinding wheels · resin bond diamond wheels.
Ordering, Samples and Delivery
- MOQ: 15 pcs per specification
- Samples: produced within 30 days; sample cost and freight are charged
- Bulk production: within 45 days after drawing confirmation
- Payment: PayPal · Trade term: FOB · Shipping: international express
- Export markets served: Russia, USA, Germany, UAE and Qatar
What to send for a fast quote
- Shape code and full size (D, T, X, H, layer width, angles or radii)
- Diamond or CBN, grit and concentration (if known)
- Bond preference: resin (B), vitrified (V) or bronze/metal
- Workpiece material and machine model, wet or dry grinding
- Quantity, required lead time and destination
Frequently Asked Questions
Why use a vitrified bond for PCD?
PCD is extremely hard. A vitrified bond stays rigid and porous, so it keeps cutting freely while holding the edge geometry needed for sharp, low-chipping PCD cutting edges.
Is vitrified available with CBN as well as diamond?

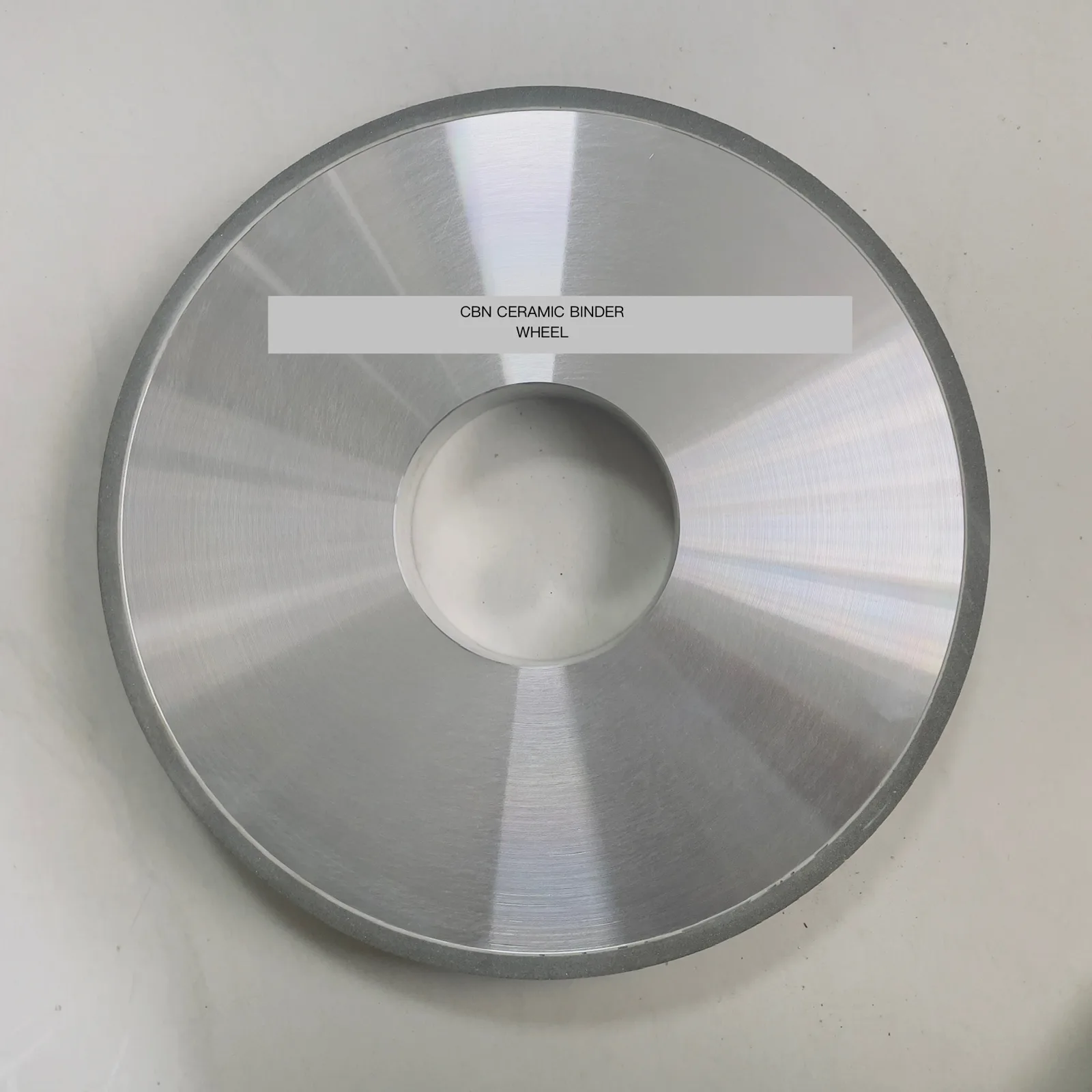

Yes. We make vitrified bond diamond wheels and vitrified CBN wheels, including vitrified internal grinding wheels and cup wheels.
How does vitrified compare with resin?
Resin cuts more softly with finer finishes; vitrified holds form better and is easier to dress, which suits precision profiles and PCD.
Which sizes are available?
Diameter Ø10–850 mm, grit 80#–3000#, concentration 50–150; thickness and bore to your drawing.
Can I order a sample first?
Yes. Samples are produced within 30 days; sample cost and freight are charged. MOQ for orders is 15 pcs.
Get a Vitrified Bond Wheel Quote
Tell us your material (PCD, PCBN, carbide or steel), machine and wheel size. Email lw892398@gmail.com or WhatsApp +86 13282830167. We reply within 24 hours (China Standard Time, UTC+8).
