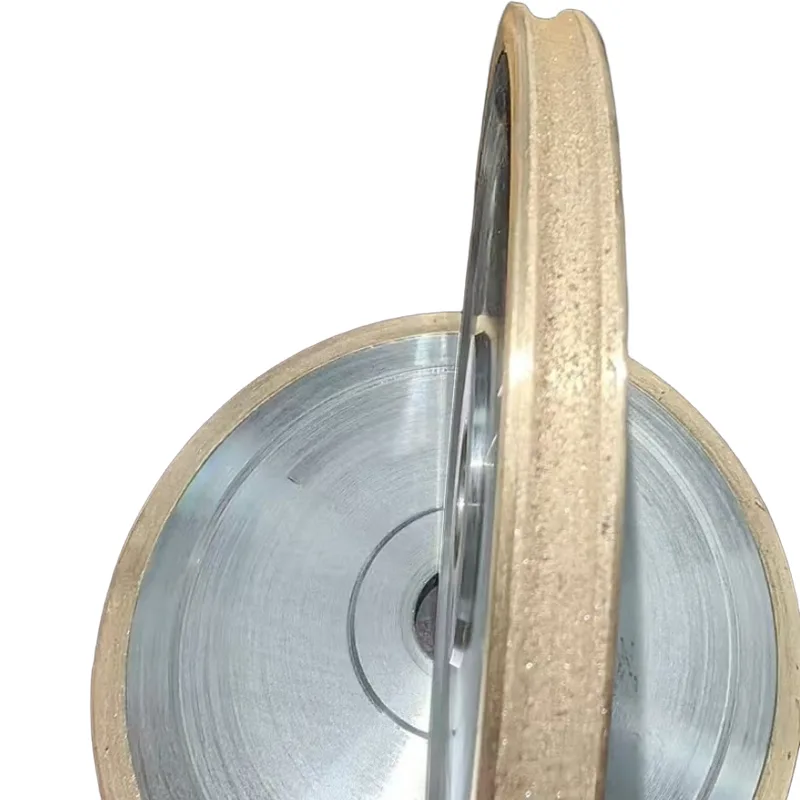

Metal bond diamond wheels hold diamond firmly in a strong sintered bronze matrix. The result is high wear resistance, stable form holding and long service life when grinding very hard and abrasive materials. Our bronze bond diamond wheels are chosen where resin wheels wear too quickly or lose their profile: technical ceramics, glass, glass-ceramics, stone and similar hard, brittle non-metals.
Bronze bond wheels are made in our Shijiazhuang factory by cold pressing on hydraulic presses, bronze sintering, precision turning, dynamic balancing and truing. Bronze also conducts heat well, helping to carry grinding heat away from the cutting zone.
Metal Bond Diamond Wheel Specifications
| Parameter | Range / option |
|---|---|
| Abrasive | Synthetic diamond |
| Bond | Bronze / metal |
| Outer diameter (D) | Ø10–850 mm |
| Thickness (T) / bore (H) | Made to your drawing / to suit your machine spindle |
| Abrasive layer (X) | 3–20 mm common; other depths to drawing |
| Grit | 80# – 3000# |
| Concentration | 50 – 150 |
| Shapes | 1A1, 6A2, 6A2T, 11A2, 12A2, 14E1, 14A1 and profiles to drawing |
| Coolant | Wet grinding recommended (confirm per application) |
| Marking example | 1A1 D150 T10 X5 H32 · D/CBN 140/170 C75 B/V/R |
Available Metal Bond Shapes

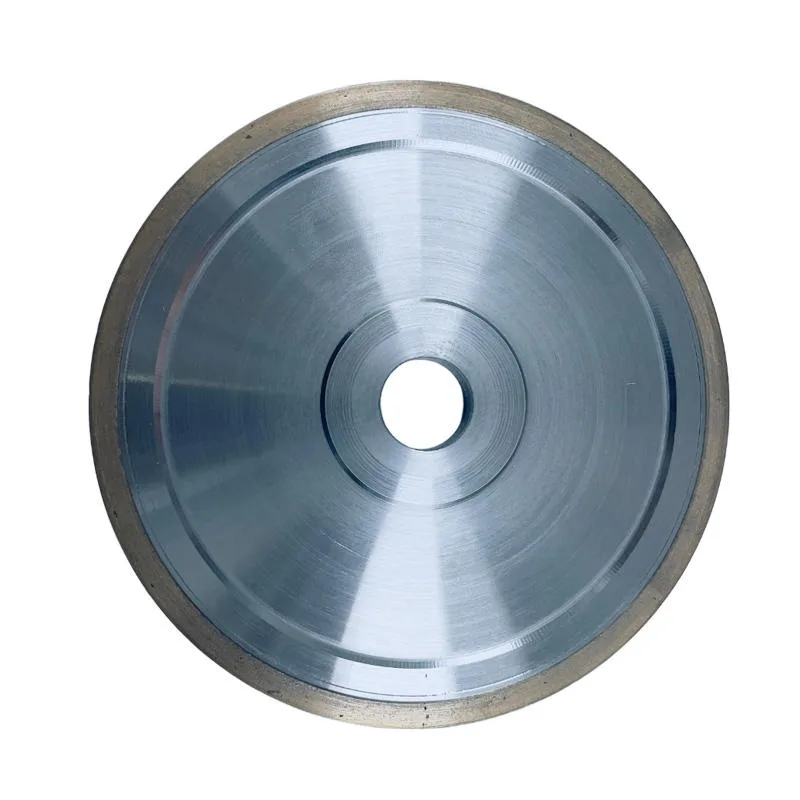

1A1 metal bond straight wheel
Straight wheels for peripheral and surface grinding of ceramic and glass parts, rods and plates, with layer depth chosen for long life.
6A2 and 6A2T metal bond cup wheels
Straight cup wheels for face and surface grinding of flat ceramic and glass-ceramic components where high stock removal is needed.
11A2 flaring cup and 12A2 dish wheels
Flaring cup and dish shapes for edge and face work where wheel access is limited.
14E1 and 14A1 profile wheels
V-edge 14E1 and 14A1 wheels for grooves, chamfers and profiles. The bronze bond holds the edge geometry over long runs.
Applicable Workpiece Materials
- Technical and hard ceramics
- Glass, quartz and optical materials
- Glass-ceramics
- Stone and other hard, brittle non-metals
- Gemstones, sapphire and similar hard materials
Advantages of the Bronze Bond
- High holding power on the diamond grain and long wheel life
- Excellent form and profile retention
- Suited to heavy stock removal in production grinding
- Excellent heat conduction from the cutting zone
- Stable, repeatable performance over long runs
Compare bonds: resin bond diamond wheels cut more freely and give finer finishes; vitrified bond wheels combine porosity with profile holding. See also diamond wheels for ceramics and glass.
Ordering, Samples and Delivery
- MOQ: 15 pcs per specification
- Samples: produced within 30 days; sample cost and freight are charged
- Bulk production: within 45 days after drawing confirmation
- Payment: PayPal · Trade term: FOB · Shipping: international express
- Export markets served: Russia, USA, Germany, UAE and Qatar
What to send for a fast quote
- Shape code and full size (D, T, X, H, layer width, angles or radii)
- Diamond or CBN, grit and concentration (if known)
- Bond preference: resin (B), vitrified (V) or bronze/metal
- Workpiece material and machine model, wet or dry grinding
- Quantity, required lead time and destination
Frequently Asked Questions
When should I choose a metal bond instead of resin?
Choose bronze bond when wheel life and form holding matter most, for example on ceramics, glass and glass-ceramics, or when a resin wheel wears its profile too quickly. Choose resin when you need the freest cut and finest finish.
How do I dress a metal bond diamond wheel?
Metal bond wheels are harder to open than resin wheels. Tell us your machine and we will advise a truing and dressing method suited to the wheel specification.
Which grit range is available?
Grit 80# to 3000#, with concentration from 50 to 150. Coarse grits for stock removal, fine grits for finishing.
Can you make a metal bond wheel to my drawing?
Yes. Send your drawing or sample with dimensions, tolerances and workpiece material. We confirm the drawing with you before production.
What are your lead times?
Samples within 30 days (sample and freight charged); bulk orders within 45 days. MOQ is 15 pcs.
Get a Metal Bond Diamond Wheel Quote
Tell us your material, machine and wheel size. We will recommend a bronze bond specification and send a quotation. Email lw892398@gmail.com or WhatsApp +86 13282830167. We reply within 24 hours (China Standard Time, UTC+8).
